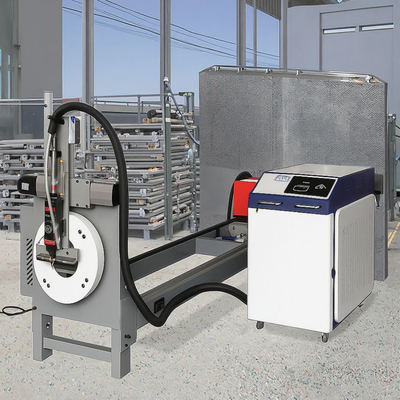

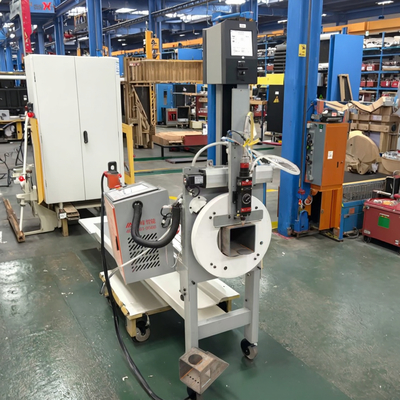

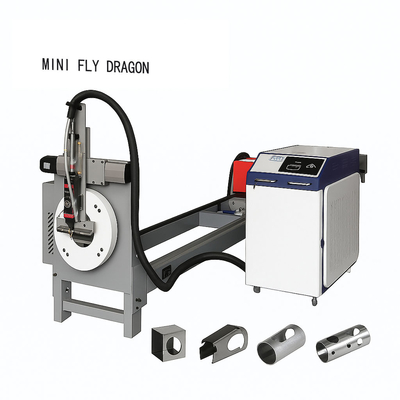

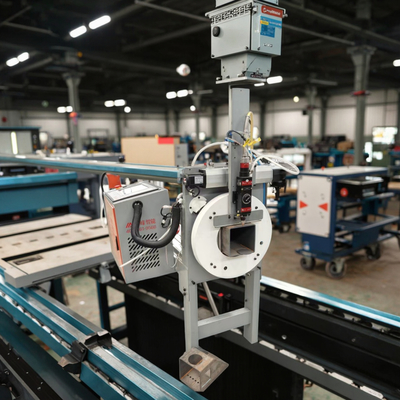

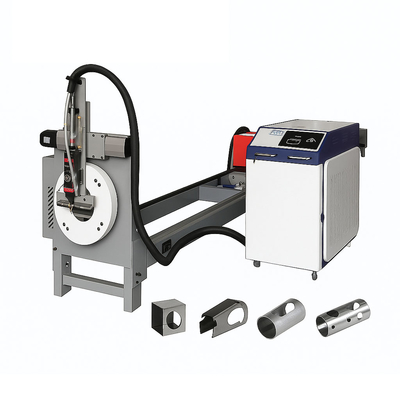

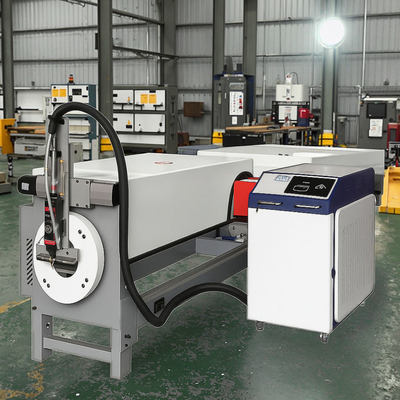

CNC Laser Tube Pipe Cutter Machine New Stainless Steel Carbon Steel Aluminum-Round Square Rectangle Shapes-Supported AI

Large Image : CNC Laser Tube Pipe Cutter Machine New Stainless Steel Carbon Steel Aluminum-Round Square Rectangle Shapes-Supported AI

Product Details:

Place of Origin:	Anhui, China
Brand Name:	NO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,500-5,980 / set

Contact Now

Detailed Product Description

Applicable Material:	Stainless Steel, Aluminum, Steel, Metal	Condition:	New
Laser Type:	Fiber Laser	Cutting Speed:	500-10,000mm/min
Graphic Format Supported:	DXF, CAD, Gcode	Cutting Thickness:	0-20MM
Cnc Or Not:	Yes	Cooling Mode:	Water Cooling
Laser Head Brand:	Raytools	Servo Motor Brand:	Leadshine
Guiderail Brand:	THK	Control System Brand:	Fangling
Weight:	380	Key Selling Points:	Automatic, Competitive Price, Eco-Friendly, Long Service Life, High-accuracy, Easy To Operate, Flexible Manufacturing, High Productivity, High Rigidity, Low Noise Level, Remote Control, Low Maintenance Cost
Optical Lens Brand:	Wavelength	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Tube	Feature:	Programmable
Control Software:	Fangling, CNC	Laser Power:	3000W, 1000W, 2000W, 1500W, 6000W
Product Name:	Fiber Laser Pipe Cutting Machine	Laser Power:	1000W /1500W/ 2000W / 3000W
Function:	Cutting Metal Materials	Cutting Materials:	Metal Materails
Keyword:	Fabric Laser Cutter	Laser Head:	Raytools Laser Head
After-sales Service Provided:	Online Support	Application:	Metal Aluminum Alloy Stainless Steel Cutting
Type:	Fiber Lasr Cutting	Laser Source:	MAX IPG RAYCUS

Product Description

Specification

Adapt diameter	100mm or 160mm
Tube Pipe shape	Round Square Rectangle
Laser source	1200 1500 3000 6000
Cut head	Manual focus

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Portable Laser tube cutter 1500W L6meter, Dia.Square tube <100mm, square tube <100m, Price EXW $5980 add $1500 upgrade to 160mm diameter. Packing: 1. Chuck and racks: 2500*550*1200mm 280kg 2. Laser Source and chiller:1020*520*1050mm 85kg Total 2pkgs , 365kg 2.2cbm

Cut thickenss Gas options 1200W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm) 2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm) Average power consumption 3-4KW Peak 6KW Cut thickenss Gas options 1500W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm) 2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm) Average power consumption 4.5-5KW Peak 7.5KW Cut thickenss Gas options 2000W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm) 2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm) Average power consumption 6-7KW Peak 9KW Cut thickenss Gas options 3000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm) Average power consumption 9-10KW Peak 15KW Cut thickenss Gas options 6000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-18mm , stainless steel,aluminum 0.3-18mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-24mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-20mm) Average power consumption 9-11KW Peak 15KW Cut thickenss Gas options 12000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-25mm , stainless steel,aluminum 0.3-30mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-40mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-40mm) Average power consumption 10-15KWh Peak 22KW
