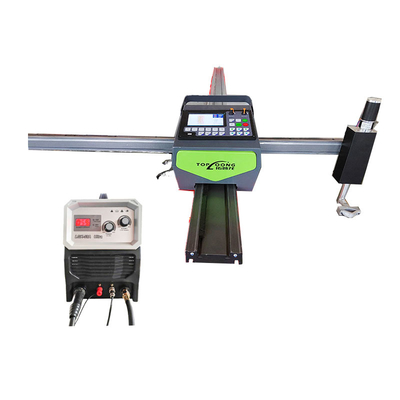

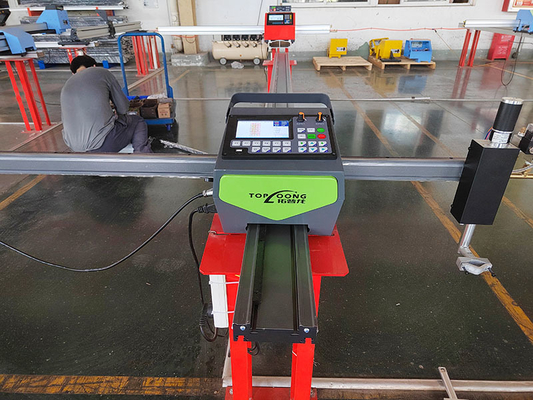

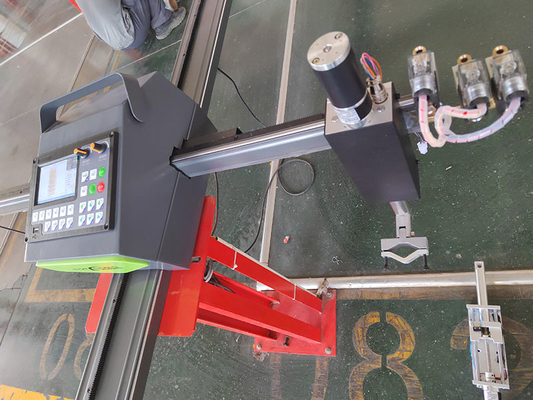

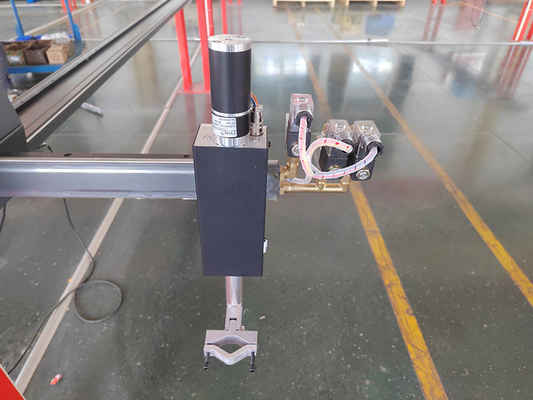

Portable 110V/220V CNC Plasma Cutting Machine Fast Ship Easy Installation for Metal Decorate Board Industrial Civil-Economical

Large Image : Portable 110V/220V CNC Plasma Cutting Machine Fast Ship Easy Installation for Metal Decorate Board Industrial Civil-Economical

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Toploong
Model Number:	1325

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$448-588 / set

Contact Now

Detailed Product Description

Motor Type:	Stepper Motor	Voltage:	110V, 220V
Rated Power:	120A	Dimension(lwh):	1820x22x20
Weight (kg):	43	Warranty:	2 Years
Key Selling Points:	High Productivity	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Gear, Motor
Cutting Mode:	Plasma Cutting+ Flame Cutting	Product Name:	CNC Plasma Metal Cutting Machine
Application:	Sheet Metal Industry	Name:	Cnc Plasma Cutting Machine Table
Type:	Metal Cutting Tools	Cutting Material:	METAL
Control System:	TOPLOONG	Cutting Thickness:	0-150mm
Function:	Cutting Steel Cnc Plasma Cutter	Keywords:	Plasma Cutting Machine Cnc Plasma

NEW 2023 Toploong cnc plasma system built in THC!

Recommend TOPLOONG CNC Plasma: 1000*1500mm 3'x5' $521 1300*2500mm 4'x8' $588 Includes: * Free Nesting software. * System TPL-2100K 5inch color screen,THC system. * Optional: add flame cut torch set $85. * USA KOL Comment:“Realy easy to use, Really easy to set up! Really realy cheap & Deliver is fast! ” Video : https://youtu.be/SZ5cYDyZ5U4

Product Description

Specification

Main configuration
1	Model	Flame cutting / Plasma cutting / both F & P
2	Effective cutting range(mm)	24003000/ 16006000/24003000/18003000 etc.
3	Machine Input Voltage	110V/220V, 50HZ/60HZ
	Plasma power input voltage	3 PHASE 380V / 220v / 110V
4	motor	3	sets	Qingsheng or Start
5	driver	2	sets	Qingsheng or Start
	CNC system	1	sets	Shanghai Jiaoda fangling
6	Plasma interface	1	sets	Top CNC Technology Co., Ltd.
7	The electromagnetic valve	1	sets	Ningbo
8	Secondary development software	1	sets	Wuhan Zhige Professional Edition
9	package	1	sets	Self-locking wooden box

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

fter the machine is installed, two steps are necessary. 1: Positioning test, adjust the positioning knob until the cutting gun touches the steel plate and is lifted to about 3mm. 2: Arc starting test: Press the test button, the plasma arc starts, and observe the actual arc pressure with a steel plate underneath. Adjust the setting to the actual value, and then you can use it normally. CNC Guide video: https://www.youtube.com/playlist?list=PL736LR4epEWUA1vXF-LAZRnJDQBDyhcyB Buy Machine give free Nesting software, it intsal to your PC, it edit DXF DWG files, and arrange your own made drawings nicely on metal plate, then export file to G code.txt, then Use USB load the G code into CNC plasma, it read the file in USB and automatic cut your drawings. Guide Video: https://www.youtube.com/playlist?list=PL736LR4epEWVl-HrsmmY4S9oosLP-YMRy TPL NEST Software Download: https://we.tl/t-nYWCUwpB0f http://zc.sinocam.com:8091/HiNest/HiNest-SETUP-x64.zip

MINI By Air:P-1015 1000*1500mm 1. Head 380*310*400mm 11kg 2. Rails 1820*230*120mm 17kg Total 2pkgs 0.11m³ 28kg MINI +PLASMA :P-1015 1000*1500mm 1. Head 380*310*400mm 11kg 2. Rails 1820*230*120mm 17kg 3. PLASMA 510*265*500mm 40kg Total 3pkgs 0.2m³ 68kg MINI By Air: P-1325 rail cut by 2pcs 1. Head 380*310*400mm 11kg 2. Rails 1830*220*130mm 29kg Total 2pkgs 0.11m³ 40kg MINI By Air: P-1325 rail cut by 2pcs 1. Head 380*310*400mm 11kg 2. Rails 1830*220*130mm 29kg 3, PLASMA 510*265*500mm 40kg Total 3pkgs 0.2m³ 80kg MINI By sea: P-1325 1. Head 380*310*400mm 11kg 2. Rails 3000*230*120mm 30kg 3. PLASMA 510*265*500mm 40kg Total 3pkgs 0.25m³ 81kg
