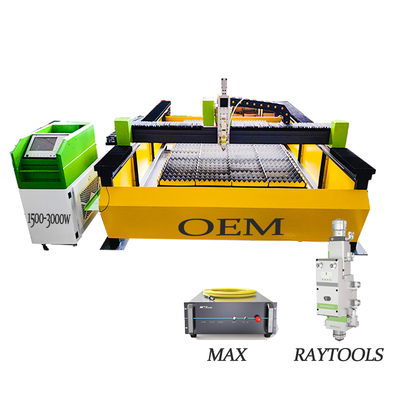

Cost-effective CNC Fiber Laser Cutting Machine Cut Tools Construction Site 1500w 2000w RAYTOOLS CYPCUT No Slopes BM110 VEICHI

Large Image : Cost-effective CNC Fiber Laser Cutting Machine Cut Tools Construction Site 1500w 2000w RAYTOOLS CYPCUT No Slopes BM110 VEICHI

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TOPLOONG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$4,500-7,455 / set

Contact Now

Detailed Product Description

Applicable Material:	Acrylic, Leather, Metal, Plywood, Wood, Metal Sheet Nonmetal:Wood	Condition:	New
Laser Type:	Fiber Laser	Cutting Area:	1500mm*3000mm
Cutting Speed:	10000mm	Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0.1-40mm	Cnc Or Not:	Yes
Cooling Mode:	Water Cooling	Laser Source Brand:	MAX
Laser Head Brand:	Raytools	Servo Motor Brand:	Leadshine
Guiderail Brand:	HIWIN	Control System Brand:	GW
Weight:	1000 KG	Key Selling Points:	Competitive Price
Optical Lens Brand:	II-VI	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Sheet Metal And Tube	Feature:	VISION SYSTEM
Product Name:	Fiber Laser Metal Cutting Machine	Keyword:	Fiber Laser Cutting Machiens
Function:	Cutting Metal Materials	After-sales Service Provided:	Online Support
Laser Power:	1500w/ 2000W / 3000W	Type:	Fiber Lasr Cutting
Cutting Materials:	Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )	Laser Source:	Max Raycus
Laser Head:	Raytools Cutting Head	Application:	LASER CUTTING
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, Bearing, Gear

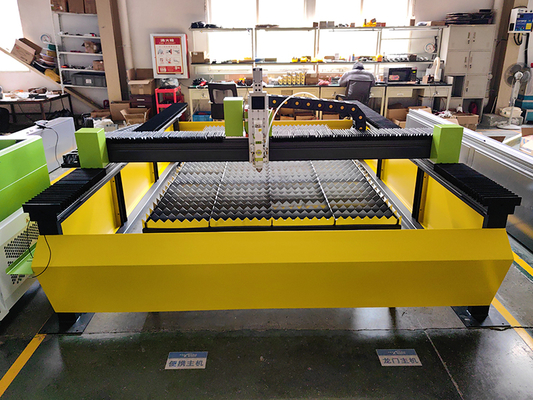

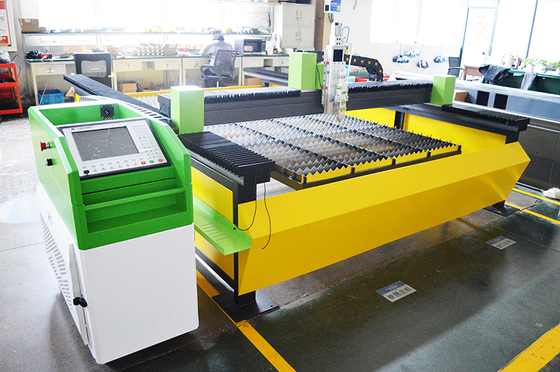

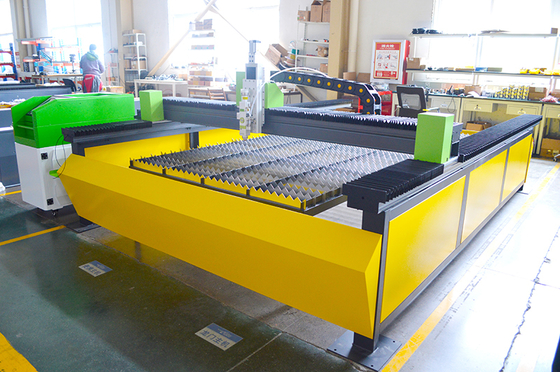

Product Description

Toploong CNC laser cutting machine 2024 new product promotion, favorable price, higher quality

1. Stability: Special heavy-duty laser module tracks are precision processed using gantry milling machines to ensure track accuracy and stability. It adopts 19*19 special laser 6-level helical gear rack to provide efficient transmission and precise positioning to ensure smooth cutting. X & Y rails adopt double linear track design achieves high-precision cutting while ensuring smooth and stable speed. 10:1 high-precision planetary reducer improves acceleration efficiency and makes cutting faster and more accurate. 2. Strong power: Leadshine high-precision laser dedicated servo motor drive provides strong power and precise control to ensure stable and efficient cutting results. 3. Long service life: The big brand MAX laser provides you with a stable and reliable laser light source to ensure excellent cutting quality. RAYTOOLS laser cutting head, ranked first in Asia, provides you with excellent cutting accuracy and a wide range of applications. 4. Convenient transportation: The high-strength detachable laser bench saves you the tedious bench production process, making installation and transportation more convenient. High-precision photoelectric switch limit control effectively avoids hard limit contact damage to parts and extends the service life of the equipment. Optional cut talbe: Based on your needs, we offer a variety of optional table configurations to meet the cutting needs of different materials and sizes. Choose the most suitable header configuration for you, from materials and dimensions to shock-proof performance, cleaning and maintenance, and adaptability.

Specification

Model	OR-FM 3015	OR-FM 4020
Working Area	3000*1500mm	4000*2000mm
Applicable Materials	Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate
Laser Power	1000w/1500w/2000w/3000w/4000W/6000W
Materials Thickness	Max 40mm
Laser source	IPG/MAX
Laser head	PAYTOOLS/PRECITEC
Dimensions(LWH)	455023002000mm	558023002000mm
Weight	4200KG	4700KG
Repeat Positioning Accuracy	±0.02mm
Accuracy of Positioning	±0.03mm
Max. Movement Speed	120m/min
Max Acceleration	1.5G
Power Consumption	<10KW
Specified voltage and frequency	380V/50Hz/60Hz/60A(Customizable)

Packing & Delivery

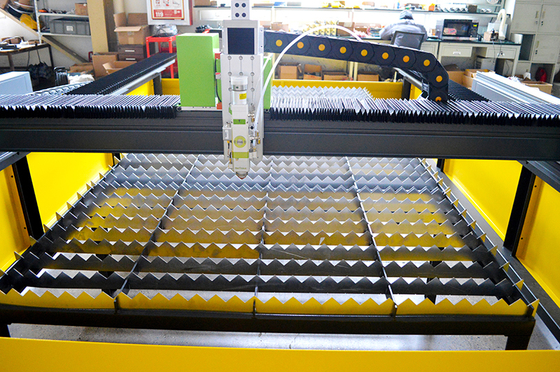

Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. It is strcng and curable it can achieve
'onine' measure ment during the production process, and the measurement is accurate and rapid.

Company Profile

Comparison of other simple patchwork laser cutting machines:

1. Shake! Ordinary gantry track: Using ordinary gantry track, the accuracy and stability of the track cannot be guaranteed, thus affecting the cutting effect. This is what it looks like when it comes out of the aluminum factory, indicating that it has not been precision processed, resulting in insufficient track accuracy. Use ordinary plasma cutting gantry rack and gear: Compared with the 19*19 special laser 6-level helical gear and rack, ordinary gantry rack and gear provide lower transmission efficiency and positioning accuracy, affecting cutting fluency and smoothness. 2. Weak! Compared with small brand servo and Lesai high-precision laser dedicated servo motor drive, there is a gap in performance and accuracy. The cutting head Jiaqiang is optional: this may mean that customers need to choose additional cutting heads, which increases the cost and configuration complexity. The lasers are Kepling and Thermal Stimulator: Kepling and thermal stimulation lasers lack the advantages in stability and reliability compared with Chuangxin lasers. 3. Short-lived! No stand or ordinary horse legs: No high-strength detachable laser stand is provided, causing customers to encounter inconvenience during installation, transportation and use. Regular horse legs may not provide adequate stability and weight-bearing capacity. Physical iron block hard limit: The use of physical iron block hard limit has the problem of vulnerability. At the same time, it lacks a protection mechanism for high-precision photoelectric switch limit control, which increases the risk of damage to the machine parts. To sum up, the crude patchwork modified laser cutting machine has disadvantages in terms of tracks, rack and gears, servo motors, cutting heads, lasers, gantry and limit control. These factors may affect the cutting accuracy, stability, and service life of the equipment!

FAQ

WE ARE PROFESSIONAL IN LASER CUTTING EQUIPMENT MANUFACTURING
