Large CNC Fiber Laser Cutting Machine Industrial Servo Motor Drive 2000*6000 mm Customize Cut Area Size Cut Long Service Life

Large Image : Large CNC Fiber Laser Cutting Machine Industrial Servo Motor Drive 2000*6000 mm Customize Cut Area Size Cut Long Service Life

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TOPLOONG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,500-9,000 / set

Contact Now

Detailed Product Description

Applicable Material:	Acrylic, Leather, Metal, Plywood, Wood, Metal Sheet Nonmetal:Wood	Condition:	New
Laser Type:	Fiber Laser	Cutting Area:	1500mm*3000mm
Cutting Speed:	10000mm	Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0.1-40mm	Cnc Or Not:	Yes
Cooling Mode:	Water Cooling	Laser Source Brand:	MAX
Laser Head Brand:	GW	Servo Motor Brand:	Huazhong
Guiderail Brand:	THK	Control System Brand:	GW
Weight:	1000 KG	Key Selling Points:	Competitive Price
Optical Lens Brand:	II-VI	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Sheet Metal And Tube	Feature:	VISION SYSTEM
Product Name:	Fiber Laser Metal Cutting Machine	Keyword:	Fiber Laser Cutting Machiens
Function:	Cutting Metal Materials	After-sales Service Provided:	Online Support
Laser Power:	500W / 1000W / 2000W / 3000W	Type:	Fiber Lasr Cutting
Cutting Materials:	Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )	Laser Source:	Max Raycus
Laser Head:	Raytools Cutting Head	Application:	LASER CUTTING
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, Bearing, Gear

Product Description

Specification

Model	OR-FM 3015	OR-FM 4020
Working Area	3000*1500mm	4000*2000mm
Applicable Materials	Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate
Laser Power	1000w/1500w/2000w/3000w/4000W/6000W
Materials Thickness	Max 40mm
Laser source	IPG/MAX
Laser head	PAYTOOLS/PRECITEC
Dimensions(LWH)	455023002000mm	558023002000mm
Weight	4200KG	4700KG
Repeat Positioning Accuracy	±0.02mm
Accuracy of Positioning	±0.03mm
Max. Movement Speed	120m/min
Max Acceleration	1.5G
Power Consumption	<10KW
Specified voltage and frequency	380V/50Hz/60Hz/60A(Customizable)

Packing & Delivery

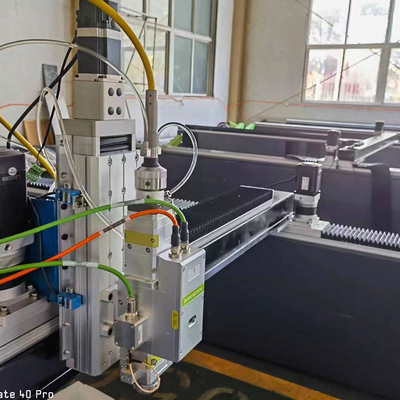

Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. It is strcng and curable it can achieve
'onine' measure ment during the production process, and the measurement is accurate and rapid.
