Portable Laser Cutting Machine Industrial Cut Solution Large Format Steels Metal Plate RAYCUS

Large Image : Portable Laser Cutting Machine Industrial Cut Solution Large Format Steels Metal Plate RAYCUS

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TOPLOONG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$4,500-4,999 / set

Contact Now

Detailed Product Description

Applicable Material:	Metal, Steels	Condition:	New
Laser Type:	Fiber Laser	Cutting Area:	1500mm*3000mm
Cutting Speed:	12m /min	Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:	0.5-3mm	Cnc Or Not:	Yes
Cooling Mode:	Water Cooling	Laser Source Brand:	RECI
Laser Head Brand:	Raytools	Servo Motor Brand:	Leadshine
Guiderail Brand:	HIWIN	Control System Brand:	Cypcut
Weight:	900 KG	Key Selling Points:	Competitive Price
Optical Lens Brand:	II-VI	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Sheet Metal	Feature:	SERVO-MOTOR
Control Software:	RAYTOOLS CYPE CUT	Product Name:	Fiber Laser Metal Cutting Machine
Keyword:	Laser Metal Cutting Cnc Machine	Function:	Fiber Laser Cutting Metal
Laser Power:	1000W /1500W/ 2000W / 3000W	Cutting Materials:	Stainless Steel Carbon Steel Aluminum
After-sales Service Provided:	Video Technical Support	Laser Head:	Raytools Cutting Head
Laser Source:	MXA RECI	Color:	Blue-white-Black-lemon
Optional:	Spliced Table	Application:	LASER CUTTING
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company, Other	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	3 Years
Core Components:	Motor, Bearing, Gear, Engine, PLC, Other

Product Overview

3015 CNC FIBER LASER CUTTING MACHINE

$5000 bring the Raycus 1500W CNC Fiber #Laser cutting machine home! Fast, accurate, smooth - good helper, your money-making artifact! Portable Model -1010 $5000 RAYCUS 1500W, RAYTOOLS BT220 & XC3000 Operate system. base removed, smaller packing, Can ship by air! Portable Model -1530 $5980 RAYCUS 1500W, RAYTOOLS BM110 & XC3000 Operate system. Flagship Model-1530 $6380 RAYCUS 1500W, RAYTOOLS BM110 & XC3000 Operate system. Remarks:Portable Model Is smaller Good for studio Metal art projects, Can ship by air. Flagship Model Good for Mass production projects. Ship by Sea.

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

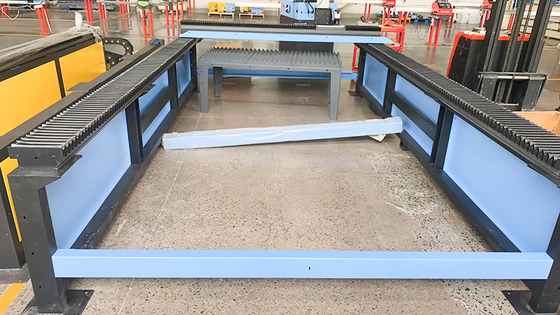

EXTENDING UNDERCARRIAGE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	1.5 2 3KW
2	Capacity	0.3-30mm
3	Operating system	RAYTOOLS PC
4	X rail effective	1500mm
5	Y rail effective	3000mm
6	Motor type	Servo motor drive
7	Laser source	MAX RECI
8	Rack gears	Helical

PRODUCT CONFIGURATION

water chiller

Racks gear

servo motor

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia
