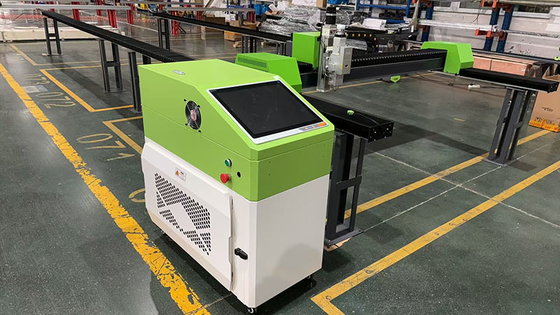

Portable 1530 CNC Fiber Laser Cutter AutoCAD DXF Compatibility 1500 3000mm Sheet Metal AI BMP Graphic Cypcut Control System New

Large Image : Portable 1530 CNC Fiber Laser Cutter AutoCAD DXF Compatibility 1500 3000mm Sheet Metal AI BMP Graphic Cypcut Control System New

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TOPLOONG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000-5,980 / set

Contact Now

Detailed Product Description

Applicable Material:	Metal, Steels	Condition:	New
Laser Type:	Fiber Laser	Cutting Speed:	12m /min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cutting Thickness:	0.5-3mm
Cnc Or Not:	Yes	Cooling Mode:	Water Cooling
Laser Head Brand:	Raytools	Servo Motor Brand:	Leadshine
Guiderail Brand:	HIWIN	Control System Brand:	Cypcut
Weight:	370	Key Selling Points:	Competitive Price
Optical Lens Brand:	II-VI	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Sheet Metal	Feature:	SERVO-MOTOR
Product Name:	Fiber Laser Metal Cutting Machine	Keyword:	Laser Metal Cutting Cnc Machine
Function:	Fiber Laser Cutting Metal	Laser Power:	1000W /1500W/ 2000W / 3000W
Cutting Materials:	Stainless Steel Carbon Steel Aluminum	After-sales Service Provided:	Video Technical Support
Laser Head:	Raytools Cutting Head	Color:	Blue-white-Black-lemon
Optional:	Spliced Table	Type:	Fiber Lasr Cutting

Product Overview

3015 CNC FIBER LASER CUTTING MACHINE

Recommend Best cost performance Effective cut area X3000* Y1500mm CNC laser cutting macine : Flagship Model 1 1500W RECI 6380 Flagship Model 2 1500W MAX 7000 Quality cut 12mm. stainless steel 6mm Remarks: Adopts Raytools PC computer touch screen system! Raytools Auto focus cut head Bm110!

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	1.5 2 3KW
2	Capacity	0.3-30mm
3	Operating system	RAYTOOLS PC
4	X rail effective	1500mm
5	Y rail effective	3000mm
6	Motor type	Servo motor drive

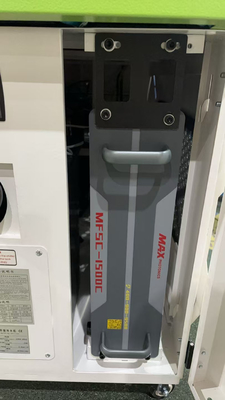

7	Laser source	MAX RECI
8	Rack gears	Helical

PRODUCT CONFIGURATION

water chiller

Racks gear

servo motor

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia
