Portable AutoCAD DXF Compatible Gantry Laser Cutting Machine 1500 3000mm Sheet Metal AI BMP Graphic Format Cypcut Motor Gear

Large Image : Portable AutoCAD DXF Compatible Gantry Laser Cutting Machine 1500 3000mm Sheet Metal AI BMP Graphic Format Cypcut Motor Gear

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Toploong
Model Number:	1530/1630/1215

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,600-3,980 / set

Contact Now

Detailed Product Description

Motor Type:	Servo Motor	Voltage:	220v/380v
Rated Power:	6.5kw	Dimension(lwh):	420022801600mm
Weight (kg):	280	Warranty:	2 Years
Key Selling Points:	High Productivity	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Gear, Motor, Other
Cutting Mode:	Laser Cutting	Product Name:	CNC Laser Metal Cutting Machine
Application:	Sheet Metal Industry	Name:	Cnc Cutting Machine Table
Type:	Metal Cutting Tools	Cutting Material:	Multiple Materials
Control System:	TPL5100HC	Cutting Thickness:	12mm
Function:	Cutting Steel Cnc Plasma Cutter	After-sales Service Provided:	Video Technical Support

Product Description

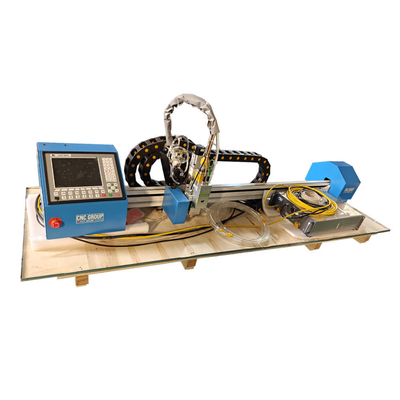

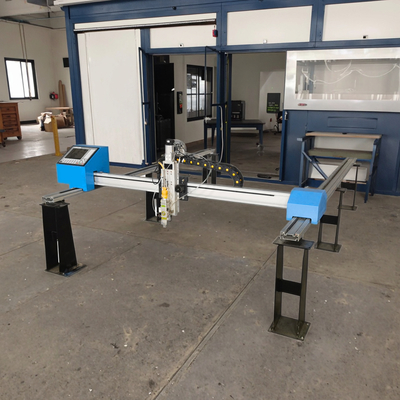

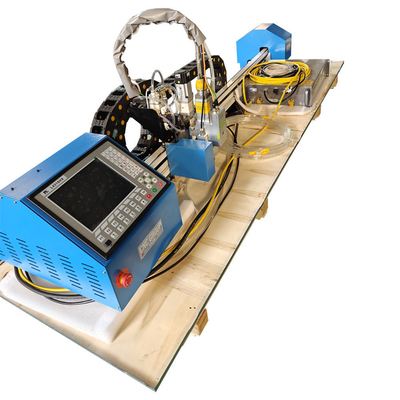

CNC LASER CUTTING MACHINE PORTABLE LIGHT GANTRY TYPE

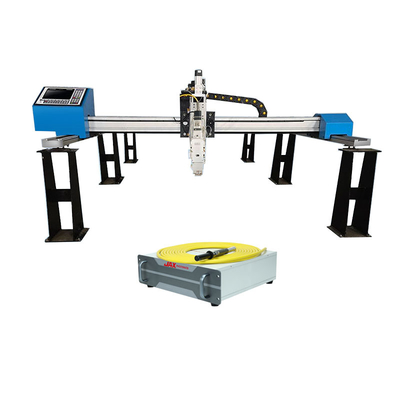

Recommend Portable Light Gantry Laser cutting machine : Model X , JAX (MAX 's son)1200W , BT220 Manual focus cut head, $3980 Model A, MAX1500W BT220 Manual focus cut head, $4780 Model B, MAX 2000W BT220 Manual focus cut head, $5980 Model C, MAX 3000W BM110 Autofocus cut head, $7780 Optional: Cut head BT220 upgrade to BM110 add $480, Add 6 support leg $300, Add Dust cover $300, Add Spliced table $500.

Specification

Main configuration
1	Model	1530 2040 3060
2	Effective cutting range(mm)	16003000/ 20006000/16003000/18003000 /3000*6000 etc.
3	Machine Input Voltage	110V/220V, 50HZ/60HZ
	Plasma power input voltage	3 PHASE 380V / 220v / 110V
4	motor	3	sets	LEADSHINE SERVO
5	driver	2	sets	LEADSHINE SERVO
	CNC system	1	sets	TOPLOONG
6	Plasma interface	1	sets	Top CNC Technology Co., Ltd.
7	The electromagnetic valve	1	sets	Ningbo
8	Secondary development software	1	sets	Wuhan Zhige Professional Edition
9	package	1	sets	Self-locking wooden box

Packing & Delivery

Packing By sea: 1, CNC BEAMS 2600*450*600mm 120kg 2, RAILS 3580*280*185mm 100kg 3, Water chiller 510*410*500 60KG Total 3pkgs 280kg 1cbm Packing By air 1, CNC and rails 2600*450*600mm 220kg 2, Water chiller 510*410*500 60KG Total 2pkgs 280kg 0.8cbm

Company Profile

FAQ

Cut thickenss Gas options 1200W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm) 2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm) Cut thickenss Gas options 1500W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm) 2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm) Cut thickenss Gas options 2000W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm) 2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm) Cut thickenss Gas options 3000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm)
