Portable 1500-3000mm CNC Laser Gantry Cutter AutoCAD DXF Compatible for Sheet Metal & Motor Gear Core BMP & AI Features

Large Image : Portable 1500-3000mm CNC Laser Gantry Cutter AutoCAD DXF Compatible for Sheet Metal & Motor Gear Core BMP & AI Features

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Toploong
Certification:	CE
Model Number:	1530/1630/1215
Document:	- Model X A B C Laser cnc.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,600-3,980 / set

Contact Now

Detailed Product Description

Motor Type:	Servo Motor	Voltage:	220v/380v
Rated Power:	6.5kw	Dimension(lwh):	420022801600mm
Weight (kg):	350	Warranty:	2 Years
Key Selling Points:	High Productivity	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Gear, Motor, Other
Cutting Mode:	Laser Cutting	Product Name:	CNC Laser Metal Cutting Machine
Application:	Sheet Metal Industry	Name:	Cnc Cutting Machine Table
Type:	Metal Cutting Tools	Cutting Material:	Multiple Materials
Control System:	TPL5100HC	Cutting Thickness:	12mm
Function:	Cutting Steel Cnc Plasma Cutter	After-sales Service Provided:	Video Technical Support

Product Description

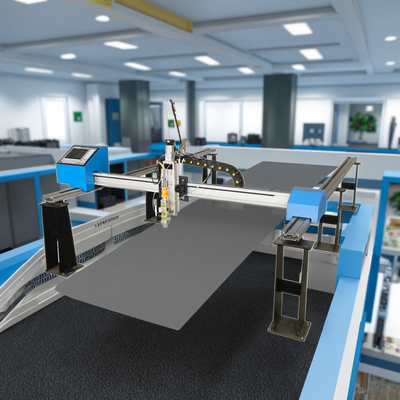

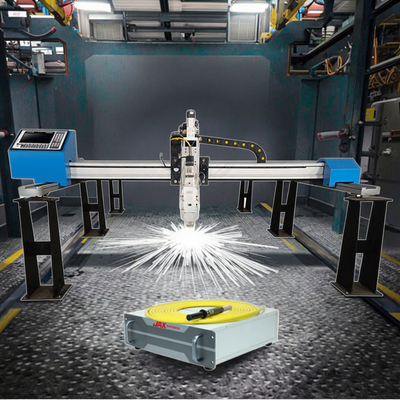

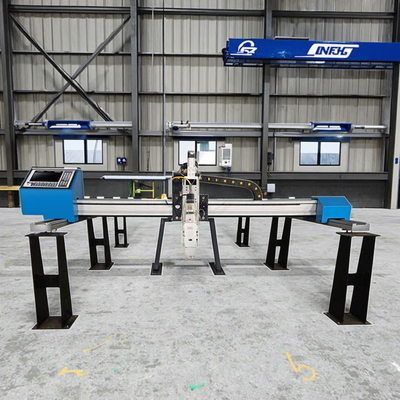

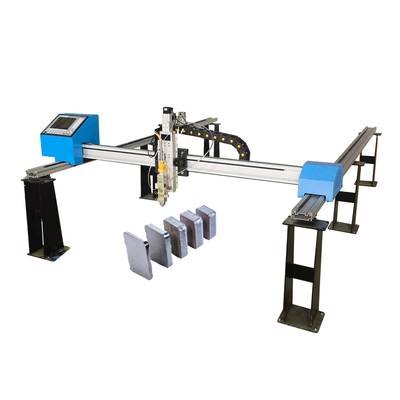

CNC LASER CUTTING MACHINE PORTABLE LIGHT GANTRY TYPE

Machine features: 1. High precision,Smooth and burr-free, especially suitable for Metal Designs advertising companies. 2. Integrated TOPLOONG cutting system, delivering precise and consistent cutting performance. 3. Machine adopt Detachable design structural, smaller size 1cbm only, cheaper shipping cost. https://youtube.com/shorts/EaGW6cDq7KA?feature=share

Specification

Main configuration
1	Model	1530 2040 3060
2	Effective cutting range(mm)	16003000/ 20006000/16003000/18003000 /3000*6000 etc.
3	Machine Input Voltage	110V/220V, 50HZ/60HZ
	Plasma power input voltage	3 PHASE 380V / 220v / 110V
4	motor	3	sets	LEADSHINE SERVO
5	driver	2	sets	LEADSHINE SERVO
	CNC system	1	sets	TOPLOONG
6	Plasma interface	1	sets	Top CNC Technology Co., Ltd.
7	The electromagnetic valve	1	sets	Ningbo
8	Secondary development software	1	sets	Wuhan Zhige Professional Edition
9	package	1	sets	Self-locking wooden box

Packing & Delivery

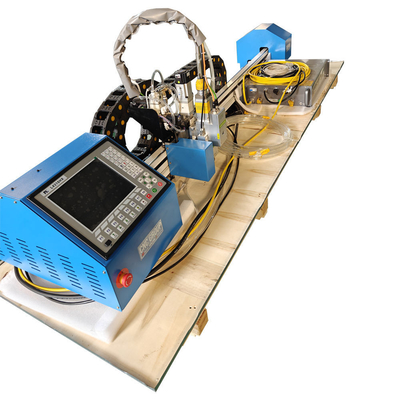

Packing By sea: 1, CNC BEAMS 2600*450*600mm 120kg 2, RAILS 3580*280*185mm 100kg 3, Water chiller 510*410*500 60KG Total 3pkgs 280kg 1cbm Packing By air 1, CNC and rails 2600*450*600mm 220kg 2, Water chiller 510*410*500 60KG Total 2pkgs 280kg 0.8cbm

Company Profile

FAQ

Cut thickenss Gas options 1200W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm) 2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm) Average power consumption 3-4KW Peak 6KW Cut thickenss Gas options 1500W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm) 2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm) Average power consumption 4.5-5KW Peak 7.5KW Cut thickenss Gas options 2000W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm) 2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm) Average power consumption 6-7KW Peak 9KW Cut thickenss Gas options 3000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm) Average power consumption 9-10KW Peak 15KW Cut thickenss Gas options 6000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-18mm , stainless steel,aluminum 0.3-18mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-24mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-20mm) Cut thickenss Gas options 12000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-25mm , stainless steel,aluminum 0.3-30mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-40mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-40mm)
