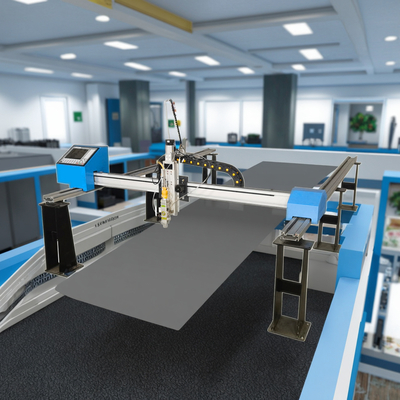

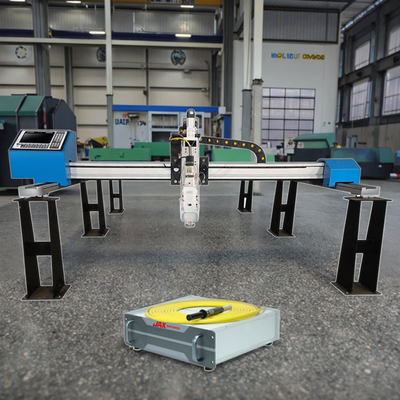

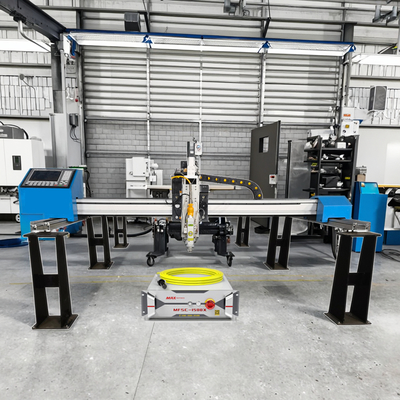

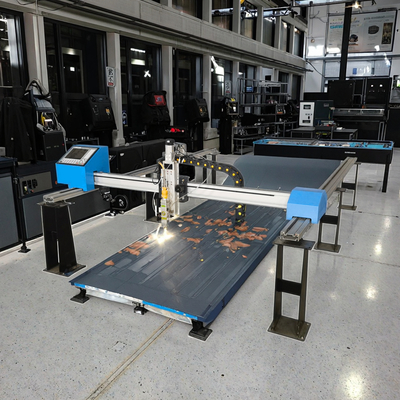

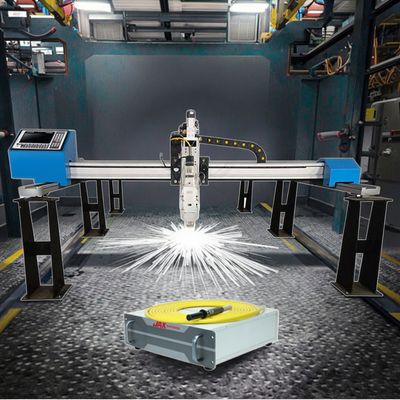

XC3000 Water Cooling Gantry Fiber Laser Cutting Machine New for Raytools for Grille Door Window Advertising for Sheet Metal

Large Image : XC3000 Water Cooling Gantry Fiber Laser Cutting Machine New for Raytools for Grille Door Window Advertising for Sheet Metal

Product Details:

Place of Origin:	Anhui, China
Brand Name:	TOPLOONG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,500-3,980 / set
Packaging Details:	wood box
Delivery Time:	5-8
Payment Terms:	T/T,Western Union
Supply Ability:	100

Contact Now

Detailed Product Description

Applicable Material:	Metal, Steels	Condition:	New
Laser Type:	Fiber Laser	Cutting Speed:	12m /min
Graphic Format Supported:	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP	Cutting Thickness:	0.5-3mm
Cnc Or Not:	Yes	Cooling Mode:	Water Cooling
Laser Head Brand:	Raytools	Servo Motor Brand:	Leadshine
Guiderail Brand:	HIWIN	Control System Brand:	Cypcut
Weight:	350	Key Selling Points:	Competitive Price
Optical Lens Brand:	II-VI	Warranty:	1 Year
Mode Of Operation:	Continuous Wave	Configuration:	3-axis
Products Handled:	Sheet Metal	Feature:	SERVO-MOTOR
Product Name:	Fiber Laser Metal Cutting Machine	Keyword:	Laser Metal Cutting Cnc Machine
Function:	Fiber Laser Cutting Metal	Laser Power:	1000W /1500W/ 2000W / 3000W
Cutting Materials:	Stainless Steel Carbon Steel Aluminum	After-sales Service Provided:	Video Technical Support
Laser Head:	Raytools Cutting Head	Laser Source:	MXA RECI
Color:	Blue-white-Black-lemon	Optional:	Spliced Table

Product Overview

3015 CNC FIBER LASER CUTTING MACHINE

FEATURES AT A GLANCE

COMPACT DIMENSIONS

EXTENDING UNDERCARRIAGE

SAFETY FRAME

SIMPLE CONTROL

SEASY MAINTENANCE

VERSATILITY

EXTENDING UNDERCARRIAGE

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	1.5 2 3KW
2	Capacity	0.3-30mm
3	Operating system	RAYTOOLS PC
4	X rail effective	1500mm
5	Y rail effective	3000mm
6	Motor type	Servo motor drive
7	Laser source	MAX RECI
8	Rack gears	Helical

PRODUCT CONFIGURATION

water chiller

Racks gear

servo motor

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

Cut thickenss Gas options 1200W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-4mm , stainless steel,aluminum 0.3-4mm) 2. oxygen cylinder (cut carbon steel 0.3-12mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-4mm) Average power consumption 3-4KW Peak 6KW Cut thickenss Gas options 1500W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-6mm , stainless steel,aluminum 0.3-6mm) 2. oxygen cylinder (cut carbon steel 0.3-16mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-6mm) Average power consumption 4.5-5KW Peak 7.5KW Cut thickenss Gas options 2000W(220v single phase): 1. >13bar air compressor (cut carbon steel 0.3-10mm , stainless steel,aluminum 0.3-8mm) 2. oxygen cylinder (cut carbon steel 0.3-20mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder (cut fine quality stainless steel , aluminum 0.3-8mm) Average power consumption 6-7KW Peak 9KW Cut thickenss Gas options 3000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-12mm , stainless steel,aluminum 0.3-10mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-22mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel , aluminum 0.3-10mm) Average power consumption 9-10KW Peak 15KW Cut thickenss Gas options 6000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-18mm , stainless steel,aluminum 0.3-18mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-24mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-20mm) Cut thickenss Gas options 12000W(380v 3phase): 1. air compressor (cut carbon steel 0.3-25mm , stainless steel,aluminum 0.3-30mm) 2. oxygen cylinder (cut fine quality carbon steel 0.3-40mm), 40L bottle can use 6.5hrs 3. Nitrogen cylinder(cut fine quality stainless steel ,aluminum 0.3-40mm)
